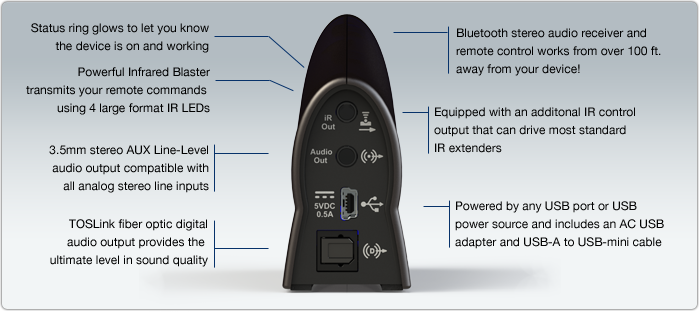

System Features: TuneLink Home for iPhone, iPod touch, and iPad
|
|
|
|
|
|
|
|
|
System Requirements
- Apple iPad, iPhone or iPod touch running OS 4.3 (or higher)
- Home entertainment system or television with analog audio or TOSLink digital input
TuneLink Home Accessory
- Bluetooth Interface
- Hi Quality A2DP stereo audio receiver
- Works over 100 feet from your player
- Data link enabled for app control
- Auto-pairing function, no codes needed
- Automatic reconnect on power up
- Universal Infrared Remote Control
- IR BLASTER - Four 3 mm IR LEDS lights up the devices in almost any room
- IR modulation form 32 KHz to 56 Khz
- Preprogrammed with almost 80,000 remote control codes
- Learning remote control feature
- Re-programmable buttons let you customize your remotes
- Selectable remote layout themes and skins
- Create MACRO sequences for custom activities
- Analog Audio Output
- 3.5 mm auxiliary jack
- Line-level analog audio output
- -10 dBm nominal level
- 20 Hz - 18,000 Hz
- Digital Audio Output
- TOSLink Compatible
- Fiber Optic Output
- Stereo Linear PCM Output
- Optical connection eliminates any ground loops for ultra-high quality audio
- Auxiliary Infrared Output
- 3.5mm output jack
- transistor driver compatible with most IR extender units
- 0 - 60mA drive capability
- Fault tolerant, auto-shutoff if connected to your analog input
- TuneLink Home Application
- Universal Multi-function Infrared remote control
- Control the TuneLink audio link, setup your remote controls and special functions
- Easy touch screen interface
- FREE download from the App Store
- Sharing Modes:
- OFF - your TuneLink is private and cannot be shared
- FREE - your TuneLink is available to link to other Bluetooth devices
- ASK - your TuneLink is available to others, subject to your approval
- TUNELINK - automatically add other devices to the shared play queue
Power Consumption
- Power from any USB charger or USB host port
- Average: < 1.0 Watts @ 5 VDC typical when active and transmitting IR commands
Physical / Environmental
- Size: Approximately 3” H x 1.5” W x 4” D
- Operating Temperature: 0° to +50 ° C
- Operating Humidity: 5% to 95% relative, non-condensing
|
|
|
|
|
|
