System Requirements

• Android platform smart phone or tablet running Android 2.1 (or higher)
• [Android 2.2 or higher required for advanced Bluetooth features such as auto-reconnect, auto-play and advanced TuneLink Share mode]
• 12V car accessory outlet
• Vehicle audio system with FM radio or auxiliary line level input

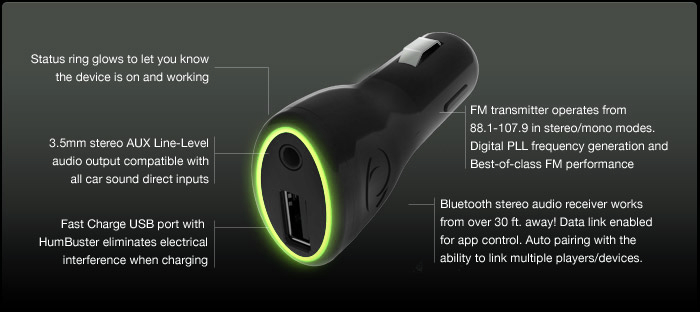

TuneLink Appessory

• Bluetooth Interface
• Hi Quality A2DP stereo audio receiver
• Works over 40 feet from your player
• Data link enabled for app control
• Auto-pairing function, no codes needed
• Automatic reconnect on power up
• Direct Audio Input
• 3.5 mm auxiliary jack
• Line-level audio output
• Compatible with all car sound direct inputs
• HUMBUSTER equipped:
• Eliminates vehicle electrical interference when charging your device while listening to music
• FM Transmitter
• Best-of-class FM performance
• 88.1 - 107.9 MHz, 200 KHz steps
• Stereo / Mono operation
• Crystal controlled, Digital PLL frequency generation
• Fast Charge USB Port
• 5 VDC, 2.1 A output
• Fault tolerant, internally fused
• Isolated power supply design
• TuneLink Application
• Control the TuneLink audio link
• Control the FM Transmitter
• SpeedTune:
• Uses GPS data to find the best open FM station for your current location
• Easy touch screen interface
• Sharing Modes:
• OFF - your TuneLink is private and cannot be shared
• FREE - your TuneLink is available to link to other Bluetooth devices
• ASK - your TuneLink is available to others, subject to your approval
• TUNELINK - automatically add other devices to the shared play queue

Power Consumption

• Average: < 1.2 Watts @ 12 VDC typical
• Peak while Peak:  11 Watts @ 12 VDC maximum

Physical  / Environmental

• Size:
• Operating Temperature:     0° to +50 °  C
• Operating Humidity:     5% to 95% relative, non-condensing
